Design and wiring harness and document generation
EPLAN Harness proD is a modern three-dimensional design software for efficient wiring harness design and documentation. The advantage of this system is that the steps from importing wiring list from EPLAN Platform to generating wiring, generating related documents and publishing two-dimensional drawings are automated. The ability to collect mechanical information within various MCAD systems and to connect with ECAD means that EPLAN Harness proD has the potential to seamlessly integrate into PDM environments. This allows the design of cable harness even when there is no available mechanical prototype. In short: development time is shortened, productivity is increased and project quality is improved on a continuous basis.
Simplification of the most important stages in the design process

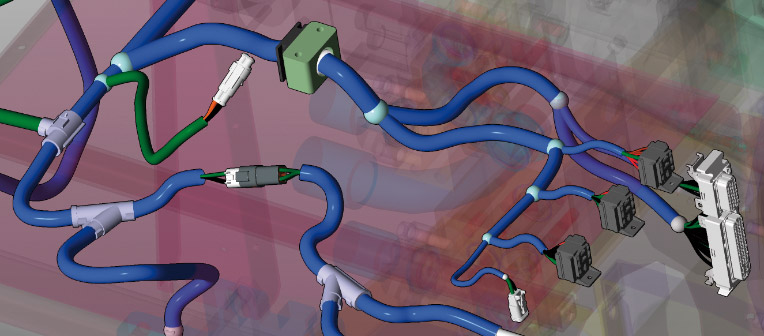

In three-dimensional space, it is very easy to define the path of cable and conductor by intuitive "point and click" method.
It's easy to get wiring lists and connection information from EPLAN.
Wiring of wires and cables can be fully automated through predefined paths
The diameter of the wire harness and the length of the wire are always up to date.
Any element that can be traced and synthesized as a whole wire harness, such as conductors, cable terminals, connectors, etc.
Automatic placement of buffer, brake
Test function: Check minimum bending radius, cross section (including American wire gauge) and collision check of wire harness, check diameter and length limit of wire harness
Two-Dimensional Product Drawing - From 1:1 Plug-in Board to Required Proportion Service Manual
Automatically generate delivery date and material calculation, weight calculation, wiring and parts list
Guiding the best product integration control file for machine wire and cable assembly
Highlights
Project Management: Clearly manage all documents and information in a wiring harness project
Variables & Options: Extended Variables and Options Management Functions
Template: Automatic derivation of two-dimensional template drawings from three-dimensional wiring harness
Component List: User-defined list of materials and components, cable drawings and calculation of time, cost and weight
EPLAN Harness proD 2D: Independent two-dimensional template design, even without three-dimensional data
MCAD Integration: Accept 3D Data and Neutral CAD Format from Standard MCAD System through Interface
Component data: Independent definitions of standard components, such as connectors, cables, connectors, etc.
Data Integration: Open System; Seamless Integration into Product Development Process (PEP, PDM)
